Ingersoll Rand F-Series Inline Air Compressor Filters

Designed and Built for Exceptional Performance

Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality and additional maintenance. Ingersoll Rand F-Series filters address these issues, helping to assure your compressed air system delivers clean, high-quality air throughout your facility.

Better Efficiency

Maintaining a low pressure drop on all compressed air components is critical for an energy-efficient system. Ingersoll Rand F-Series filters have been engineered to deliver low pressure drop throughout the life of the filter element and to provide a unique dual indicator that illustrates the true cost of pressure drop on the system.

Better Choices

Every compressed air system has unique filtration requirements. F-Series filters are available in four different filtration grades, providing complete filtration solutions for all critical compressed air processes.

Energy Efficient Through and Through

Pressure drop accounts for over three-quarters of the ownership cost of a compressed air filter. Even when a filter element is clean and dry, it can rob a compressed air system of pressure, causing the air compressor to work harder and increase energy costs. The flow path through the F-Series filter housing reduces turbulence and enhances efficiency, while the deep-pleated element design further minimizes pressure drop.

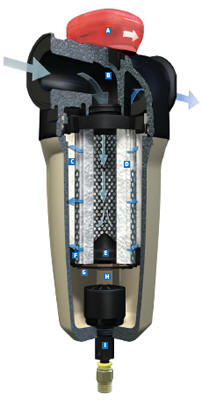

Features and Benefits

1. Patented dual indicator shows differential pressure drop and economical operating efficiency
2. Patented smooth bore flow insert directs air into the filter element, minimizing turbulence and pressure losses
3. All-aluminum, precision die cast body suitable for 80°C (176 °F) and 17 bar (250 psig)
4. Proprietary coating applied to the inside and outside surfaces provides corrosion protection in harsh industrial environments
5. Ergonomic bowl design with no-touch filter element simplifies element replacement
6. Time strip label indicates when it’s time to change the element (A Grade only)
7. Industrial-grade brass float drain discharges accumulated condensate and oil more reliably than lesser quality plastic drains
8. Deep-pleated filter media reduces air flow velocity to maximize filtration efficiency and minimize pressure losses
9. High-efficiency drainage layer improves liquid drainage properties and enhances chemical compatibility
10. Simple visual alignment of the filter head and bowl ensures accurate assembly of components and helps to improve safety

Different internal filter elements are available depending on the level of filtration required:

• Grade G - General Purpose Protection: Particle removal down to 1 micron including coalesced liquid, water and oil, providing a maximum remaining oil aerosol content of 0.1 mg/m3 (0.1 ppm) @ 21°C (60°F).
• Grade H - High Efficiency Oil Removal Filtration: Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (0.01 ppm) @ 21°C (60°F). (Precede with Grade G filter)
• Grade A - Activated Carbon Filtration: Oil vapor and hydrocarbon odor removal, providing a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) @ 21°C (60°F). (Precede with Grade H filter)
• Grade D - General Purpose Dust Filtration: Dust particle removal down to 1 micron.
