Chicago Pneumatic 8000 Hour Service Kit for QRS10HP, QRS15HP and Quincy QGS

Chicago Pneumatic OEM 2200902355 QRS10HP and QRS15HP and Quincy QGS 8000 Hour Service Kit

The 2200902355 service kit will fit most QRS10HP and QRS15HP air compressors that were manufactured after September 2008, both with and without integrated air dryers. This kit is also extremely common on several Quincy QGS10 and QGS15 rotary screw air compressors with serial number CAI374630 and after, as well as several Atlas Copco G models.

The part number is sometimes shown as 2200-9023-55 and 2200 9023 55

This Chicago Pneumatic and Quincy Compressor service kit contains most of the parts needed to complete a major annual service on your rotary screw air compressor. 2200902355 was specifically designed for compressors that are running more than 5,000 hours per year, or for facilities that have a critical reliance on compressed air. If you are not running more than 4,000 hours per year, the factory still recommends utilizing this kit every 2 years.

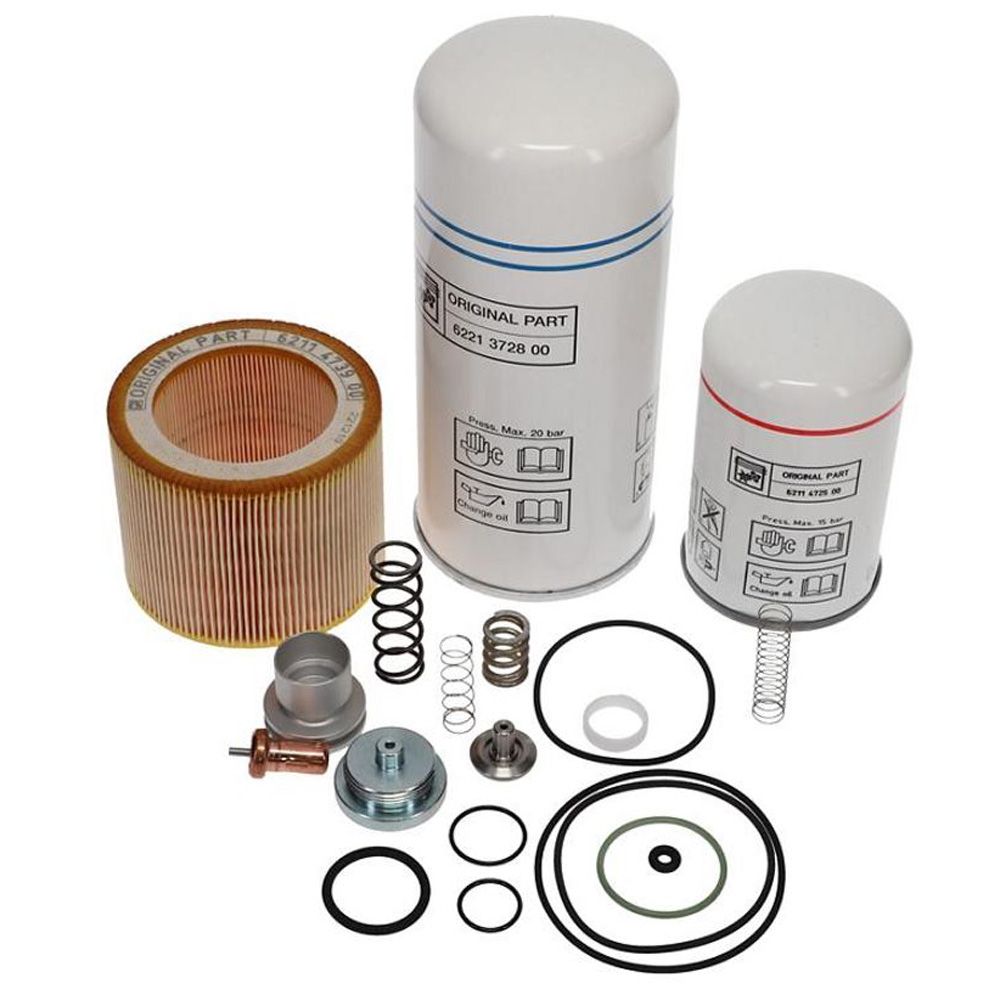

The 2200 9023 55 kit includes the following parts:

• 2200 5998 20 – Thermostatic valve kit
• 2200 9009 61 – Unloader kit replacement (also known as the inlet valve kit)
• 6211 4725 50 – Oil filter element
• 6221 3728 50 – Separator element filter
• 6211 4739 50 – Air Filter Element

This service kit does not include oil. Draining the old oil and replenishing is necessary when completing a full service. If oil is needed, Rotair Plus would have originally been shipped with your air compressor. It is also recommended that the belts are changed during this period.

All parts listed above are OEM items. May service kits are aftermarket kits that are not rated to the same specifications as OEM. Feel free to contact us if you have questions on service intervals or to confirm that this kit is correct for your air compressor.
