  4. Diffuser Tube

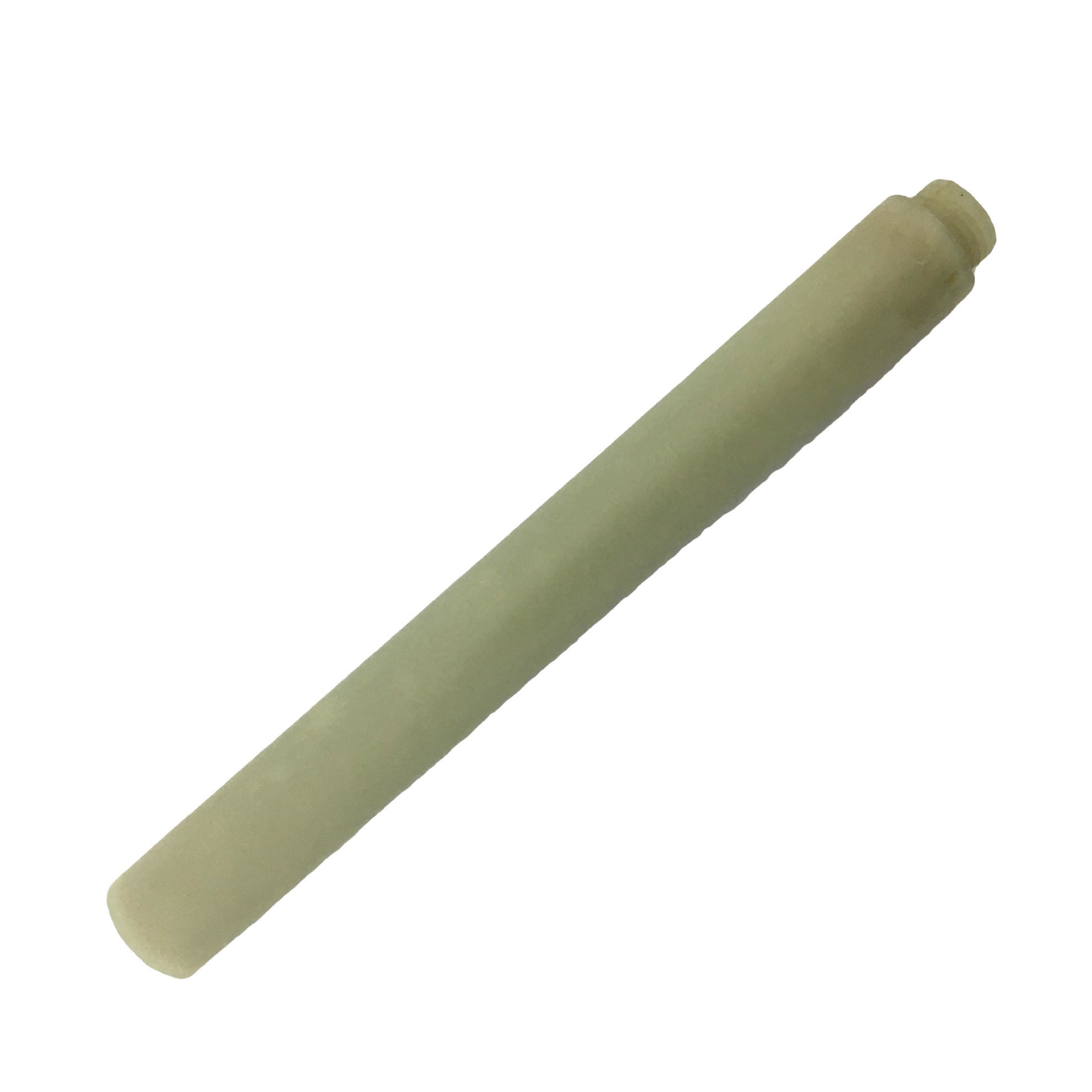

Picture of Diffuser Tube
Shop Graco
OEM Graco

Diffuser Tube

$6.20
$6.01
Ships in about 6-7 business days
SKU: 196786
Part #: 196786
GTIN: 633955955585
Please verify the series number of your unit before ordering Please verify the series number of your unit before ordering

Manifold Filter Support and Diffuser Tube 196786 by Graco

This manifold filter support sits inside the hose filter assembly. The easy out filter is then placed on the outside of the support. The airless sprayer filter support works to prevent the main element from be crushed when hit with paint at a high pressure.

Sprayer DescriptionModel No.Series
795 ULTIMATE MX HB825020
795 ULTIMATE MX LB825022
795 Ultra Max HB245020
795 Ultra Max LB245022
1095 ULTIMATE MX (Display)825030
695 Ultimate Mx Hi826024
695 Ultimate Mx Lo826025
695 Ultimate Mx Hi825000A,B
695 Ultimate Mx LO825002A.B
695 ULTIMATE MX824130, 824132
695 Ultimate Mx Hi Boy824910
695 Ultimate Mx Lo Boy824912
695 Ultra Hi boy (Pump 244195)246308
695 Ultra Lo boy (Pump 244195)245309
695 Ultra Hi boy (Pump 246428)246308
695 Ultra Lo boy (Pump 246428)245309
695 Ultra Max232910, 232911
695 Ultra Max232912A,B
695 Ultra Max232913A,B
695 Ultra Max 695 Hi-Boy(Old)232130
695 Ultra Max 695 Hi-Boy(Old)Bare232131
695 Ultra Max Hi boy245000, 245001A,B
695 Ultra Max Lo-boy245002A,B
695 Ultra Max Lo-boy245003A,B
695 Ultra Max 695(Old) Lo-Boy232132
695 Rental Hi Boy (245000 Sprayer)245050
1095 Ultra Max (Display)245030
1595 ULTIMATE MX824160
1595 ULTIMATE MX825040
1595 ULTIMATE MX CSA825042
1595 Ultra Max Hi Boy Bare245040
1595 Ultra Max245041, 245042, 245043
3900 GMax Bare/HiBoy233701
3900 GMax Bare/LoBoy233700
5900 GMax Lo Boy (Non Display)232623
5900 GMax Lo Boy(Bare)(Non Display)232622
5900 GMax Hi Boy (Non Display)232621
5900 GMAX Hi Boy(Bare)(Non Display)232620
5900 GMax Bare/HiBoy233706
5900 GMax Bare/LoBoy233705
5900 GMax Complete/HiBoy233708
5900 GMax Complete/LoBoy233707
5900 GMAX CONV Non Display232624, 232625, 232626
5900 GMAX CONV Non Display232629, 232680, 232682
5900 GMax Conv/Hi233709, 233710, 233711
5900 GMax Conv/Hi233712
5900 GMax Conv/Lo233713
5900 GMax Conv/Lo233714
5900 GMax Conv/Lo233715
200 GH Bare233940
200 GH Complete233941
200 GH W/Elect. Motor233942
225 HydraMax Complete233643, 233642A,B,C
225 HydraMax Direct Bare233640A,B,C
225 HydraMax Siphon Bare233641A,B,C
300 HydraMax Complete248564A,B
300 HydraMax Complete233651C
300 HydraMax Siphon Bare233650A,B,C
350 HydraMax Complete233661A,B,C
350 HydraMax Siphon Bare233660A,B,C
200 LineLazer HS III 1 gun234240
200 LineLazer HS III 2 gun234241
3900 LineLazer III 2 GUNS233689, 233691
5900 LineLazer III 1 GUNS233690, 233688
Mark V(use 308263 for all parts except motor&Board965431
MARK V245049, 249029, 245044
