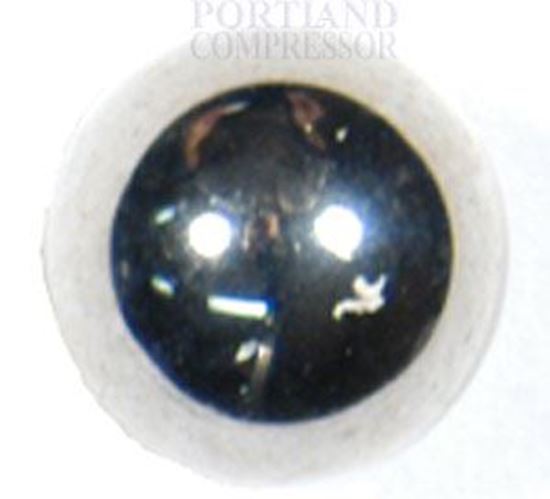

Picture of Fluid Section Ball
Shop Graco
OEM Graco

Fluid Section Ball

$8.10
$7.86
Ships in about 6-7 business days
SKU: 101947
Part #: 101947
GTIN: 633955087422
Please verify the series number of your unit before ordering Please verify the series number of your unit before ordering

Graco Fluid Section Piston Ball - 101947

This ball is placed inside of a fluid section of many Graco airless paint sprayers, and sits on the piston valve, while acting as a check valve to control the flow of paint

For use with these airless paint sprayers:

Paint Sprayer DescriptionSprayer Model NumberSeries Number
1095 II Ult MX Prem Hi-boy826044
1095 II Ult MX Std Hi-boy826050
1095 II Ultra Max Prem Hi-boy248034
1095 II Ultra Max Std Hi-boy248039
1095 II UltraMax Premium Hi-Boy249653
1095 II UltraMax Standard Hi-Boy249651
1095 II Ultimate MX Stand. High-Boy826073
1095 II Ultimate MX Prem. High-Boy826074
1500 ULTIMATE820115, 820116
1500 ULTIMATE PLUS820213
1500 Plus+ ULTIMATE824030, 824031, 824032
1500 Ultra (Bare)220627
1500 Ultra231053
1500 Ultra Plus(Board Under)231811, 231812
1500 Ultra Plus231351, 231352
1500 Ultra Plus (CAN)223773
1595 II Ult MX Prem Hi-boy826045
1595 II Ult MX Std Hi-boy826051
1595 II Ult MX Prem Hi-boy826053
1595 II UltraMax Prem Hi-boy248035
1595 II UltraMax Std Hi-boy248040
1595 II UltraMax Premium Hi-Boy253059
1595 II UltraMax Standard Hi-Boy253060
1595 II UltraMax Prem. (Non ETL)249659
1595 II UltraMax Stand. (Non ETL)249658
1595 II Ultimate MX Stand. High-Boy826082
1595 II Ultimate MX Prem. High-Boy826081
1595 II Ultimate MX Stand.(Non ETL)826075
1595 II Ultimate MX Prem.(Non ETL)826076
1595 ULTIMATE MX824160, 825040
1595 ULTIMATE MX CSA825042
1595 Ultra Max232160, 232161
1595 Ultra Max CSA232162 , 232163
1595 Ultra Max Hi Boy Bare245040
1595 Ultra Max245041, 245042, 245043
IronMan 500G256790
3012 With GMax 5900 Pump224524A,B
5000 GM Lo boy222488A
5000 GM CONVERT231316, 231331
5000 GM Lo boy231577
5000 GM Hi boy231576
5000 GM Hi boy220886A,B,C
5000 GM Hi boy231052A,B,C
5900 II GMax Conv Hi248889
5900 II GMax Conv Hi prm248692
5900 II GMax Conv Hi std248691, 248693
5900 II GMax Conv Lo prm248696, 248890
5900 II GMax Conv Lo std248694, 248695, 248697
5900 II GMax Conv Lo-Boy (Gas )248695
5900 II GMax Prem HI boy248690
5900 II GMax Prem lo boy248689
5900 II GMax Std HI boy248688
5900 II GMax Std Lo boy248687
5900 GMax Lo Boy (Non Display)232623, 232622
5900 GMax Hi Boy (Non Display)232620 , 232621
5900 GMax Bare/HiBoy233706
5900 GMax Bare/LoBoy233705
5900 GMax Complete/HiBoy233708
5900 GMax Complete/LoBoy233707
5900 GMAX CONV Non Display232624, 232625, 232626
IronMan 300E256655
350 EM226350
5900 GMAX CONV Non Display232629, 232680,232682
5900 GMax Conv/Hi233709, 233710
233711, 233712
5900 GMax Conv/Lo233713, 233714, 233715
10000 GM231343
10000 GMAX232640
130 GH Conv. Bare253709
130 GH Conv.Comp.253957
130 GH Conv. Bare w/electric motor (non csa)253959
130 GH Conv. Bare w/electric motor (csa)253980
5000 LineLazer231133
5900 LineLazer II232661, 233728, 233729
5900 LineLazer III233690, 233691
5900 Linelazer IV248866, 248867
5900 LineLazer IV Auto-Layout253921, 253954
160 HD Model Airless (LDI) Series231150, 231152
5000 GM HD231831
5900 GMAX H.D. (Non Display)232627
5900 GMax HD Hi bare233716
5900 GMax HD HI COMP233717
5900HD TexSpray248699
5900HD TexSpray Conv255630, 255631
5900HD TexSpray Conv (CSA, ETL,UL)255954
Mark V Non ETL Approved249903
Mark V(use 308263 for all parts except motor&Board965431
MARK V245044, 245049, 231406,
249029, 232171, 231406
Mark V ETL Approved249904
