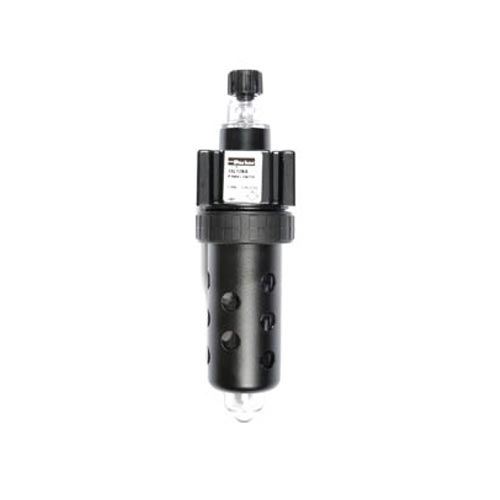

15L MIcro-Mist Air Compressor Lubricator - 15L12N
The 15L Series Lubricators offer a proportional oil delivery through a wide range of air flows. The pin-point needle valve guarantees repeat oil delivery and assures easy adjustment of delivery rate. The 15L12N is designed to generate oil droplets of 5 microns or smaller downstream, to lubricate systems which have difficult piping arrangements. The 15L series lubricators are great for low and high flow applications with constant or changing air flow.
Specifications: |
---|
Port Size | Maximum Temperature | Maximum Pressure | Minimum Pressure | Minimum Flow for Lubrication | High Flow |
---|
1/4” NPT | 125°F (52°C) | 150 psig | 15 psig | 2SCFM @ 100PSIG | 40 SCFM |
