  5. Sleeve Ultra 1500/GM5000/LL5000

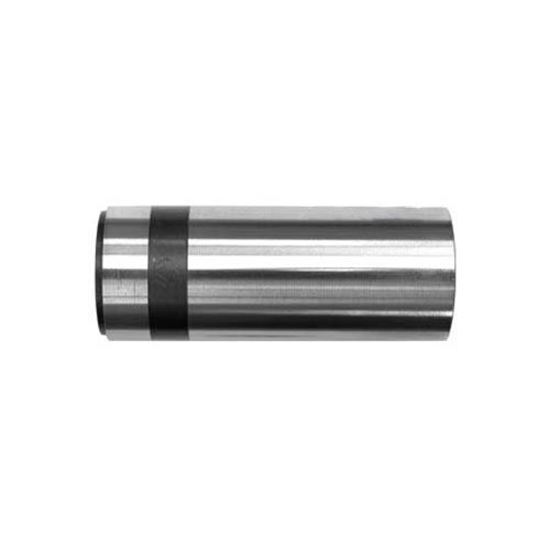

Picture of Sleeve Ultra 1500/GM5000/LL5000
Shop Graco
OEM Graco

Sleeve Ultra 1500/GM5000/LL5000

SKU: 183361
Part #: 183361
GTIN: 633955419131
Ships in about 6-7 business days
NOT in stock, Ships in about 6-7 business days
$511.00
$495.67
Please verify the series number of your unit before ordering Please verify the series number of your unit before ordering
Graco Airless Paint Sprayer Fluid Section Sleeve - 183361

The Graco 183361 airless sprayer sleeve assembly houses all of the major fluid section components, including the piston rod and main fluid packings.

Sprayer ModelSprayer Part No.Series Letter
1500 ULTIMATE820115
1500 ULTIMATE820116
1500 ULTIMATE PLUS820213
1500 Ultimate Plus +824030
1500 Ultimate Plus +824031
1500 Ultimate Plus +824032
1500 Ultra (Bare)220627
1500 Ultra231053
1500 Ultra Plus(Board Under)231811
1500 Ultra Plus (Board Under)231812
1500 Ultra Plus231351
1500 Ultra Plus231352
1500 Ultra Plus (CAN)223773
3012 With Gm 5000 Pump224524A
5000 GM Lo boy222488A
5000 GM CONVERT (Bare)231316
5000 GM CONVERT231331
5000 GM Lo boy231577
5000 GM Hi boy231576
5000 GM Hi boy220886C,B,C
5000 GM Hi boy231052A,B,C
10000 GM231343
5000 LineLazer231133
160 HD Model Airless (LDI) Series231150
160 HD Model Airless (LDI) Series231152
Mark V(use 308263 for all parts except motor&Board965431
