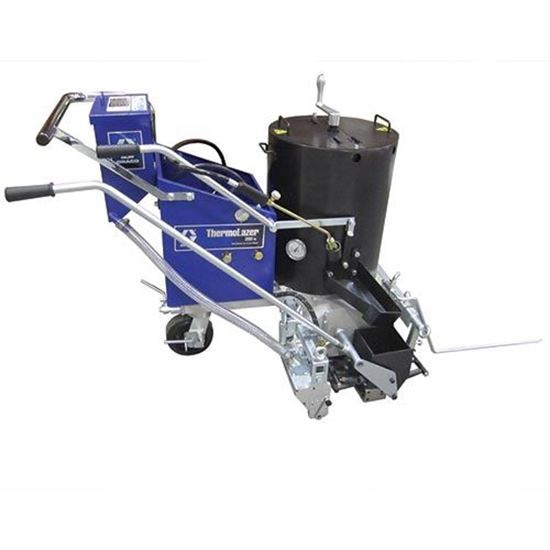

Graco Thermolazer 200TC Thermoplastic Line Striper System

Graco 24U282 Thermolazer 200TC Thermoplastic Line Striper System with 4" FlexDie

Introducing the new Graco ThermoLazer® 200TC. Graco has created the most user-friendly, innovative thermoplastic striper to hit the streets. This 24U282 system is the solution for smaller more maneuverable thermoplastic handliners. Graco also added several new features that truly put this striper at the top of any “must-have” list. These features include the FlexDie™ Screed Box that delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design.

The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.

• FlexDie System
  • Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design.
  • FlexDie’s deep-die, all steel construction delivers great lines and holds up to heat and harsh jobsite conditions
  • Built-in adjustment for mil thickness
• 200 lb Material Kettle
  • Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast
• 40 lb Bead Hopper
  • Perfectly matched to the material kettle with a superior flow design
• Direct Heat System
  • Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow
• Tri-Wheel System
  • Dual solid front and single solid rear wheels provide smooth, quiet operation
  • Rear-swivel wheel and dual fixed-wheels allow for easy maneuvering when striping curves, arrows, and other hard-to-stripe jobs
• Adjustable Operator Handle
  • Handle easily adjusts to multiple heights
• Adjustable Front Pointer
  • Easily adjusts for all size dies for following all marks and creating straight lines
• Bead Dispenser
  • 8.5 or 12.5 inch dispenser, and 1 inch increments allow you to “dial-in” the bead drop rate
